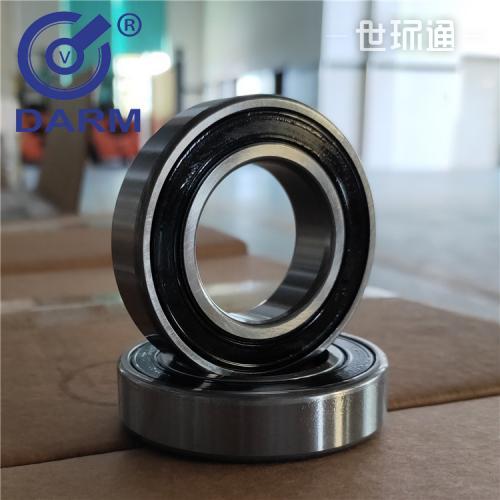

high precision nonstandard 6006 deep groove ball bearing 30x52x15
product description
| bearing no | boundary dimensions (mm) | dynamic load rating cr (kn) | static load rating cor (kn) | limit rotational speed (r/min) | weight (kg) | |||
| d | d | b | grease lubrication | oil lubrication | ||||
| 6000 | 10 | 26 | 8 | 4.58 | 1.97 | 20000 | 28000 | 0.019 |
| 6001 | 12 | 28 | 8 | 5.11 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 5.59 | 2.84 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 6.00 | 3.25 | 17000 | 22000 | 0.04 |
| 6004 | 20 | 42 | 12 | 9.38 | 5.03 | 15000 | 19000 | 0.068 |
| 6005 | 25 | 47 | 12 | 10.06 | 5.85 | 13000 | 17000 | 0.079 |
| 6006 | 30 | 55 | 13 | 13.23 | 8.3 | 10000 | 14000 | 0.113 |
| 6007 | 35 | 62 | 14 | 16.21 | 10.42 | 9000 | 12000 | 0.149 |
| 6008 | 40 | 68 | 15 | 17.03 | 11.7 | 8500 | 11000 | 0.185 |
| 6009 | 45 | 75 | 16 | 21.09 | 14.77 | 8000 | 10000 | 0.231 |
| 6010 | 50 | 80 | 16 | 22.02 | 16.25 | 7000 | 9000 | 0.25 |
| 6011 | 55 | 90 | 18 | 30.26 | 21.93 | - | - | 0.362 |
| 6012 | 60 | 95 | 18 | 31.66 | 24.22 | - | - | 0.385 |
| 6013 | 65 | 100 | 18 | 32.06 | 24.89 | - | - | 0.408 |
| 6014 | 70 | 110 | 20 | 38.59 | 30.43 | - | - | 0.537 |
| 6015 | 75 | 115 | 20 | 40.20 | 33.20 | - | - | 0.603 |
| 6016 | 80 | 125 | 22 | 47.50 | 39.80 | - | - | 0.821 |
| 6017 | 85 | 130 | 22 | 50.80 | 42.80 | - | - | 0.848 |
| 6018 | 90 | 140 | 24 | 57.80 | 49.80 | - | - | 1.103 |
| 6019 | 95 | 145 | 24 | 58.00 | 50.00 | - | - | 1.156 |
| 6020 | 100 | 150 | 24 | 64.50 | 56.20 | - | - | 1.174 |
product feature:
1. long life and high quality.
2. high precision, low noise with strict controlling of the quality.
3. high loading by the advanced high-technical design.
4. most competitive price, factory direct.
5. oem service offered, to meet the customer's requirements.
