grooved flexible couplings products serise

https://tianjin-morui.en.made-in-china.com/product/twftzbkbfiph/china-stainless-steel-flexible-grooved-joint-piping-coupling.html

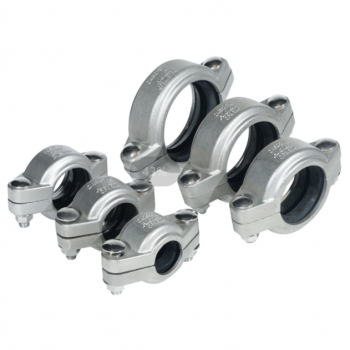

stainless steel grooved flexible couplings specification

material specifications

housing : stainless steel 304(cf8) or 316l(cf3m)

rubber gasket : standard gasket is epdm(ethylene-propylene-diene monomer), the range of working temperature is -50ºc-150ºc,using for cold water,hot water and rare alkaline chemical products.

bolt&nuts : stainless steel bolts&nuts according to international standard models of carriage bolts and flange nuts.nut is ss304 material.

according to astm a743 standard for housing material
--type 304 to astm a743 cf8(304)
--type 316l to astm a743 cf3m(316l)

size specifications

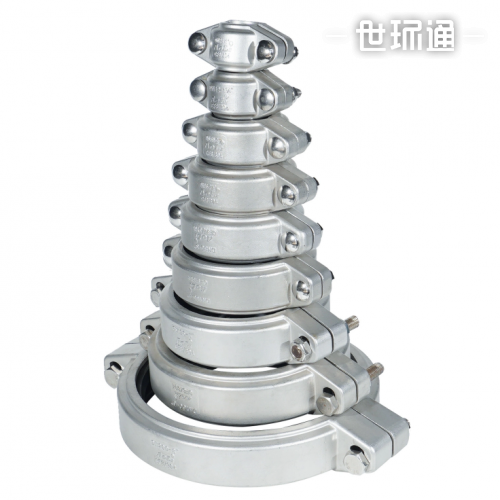

size range : 1"to 8"(dn25 to dn200),cutting groove only.

rated working pressure
--low pressure flexible coupling 300psi;
--medium pressure flexible coupling 600psi;
--high pressure flexible coupling 1000/1200psi;
--super high pressure flexible coupling 1500psi.


low pressure stainless steel flexible grooved coupling(300psi)

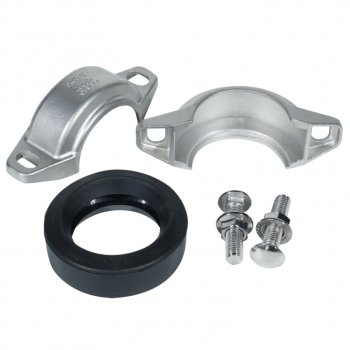

housing:
stainless steel is used as raw material with good corrosion resistance. and there is the natures which is high strength, good toughness and good mechanical properties. according to the precision casting process, the precision of the clamping size is guaranteed.the material has tensile strength which is not less than 600 mpa and the extension is not less than 15%. withstands high pressure and high impact of pipeline by several disadvantage factors.

gasket :
the gasket seal with special c-shaped design, that is perfect matching with pipeline dimension in order to achieve working pressure.the gasket is tightener while further pressed in order to achieve sealing efficiency.when the meanwhile, the imported raw material will also be guaranteed the mechanical properties.
