APC-6D Aerosol Generator

Product Introduction

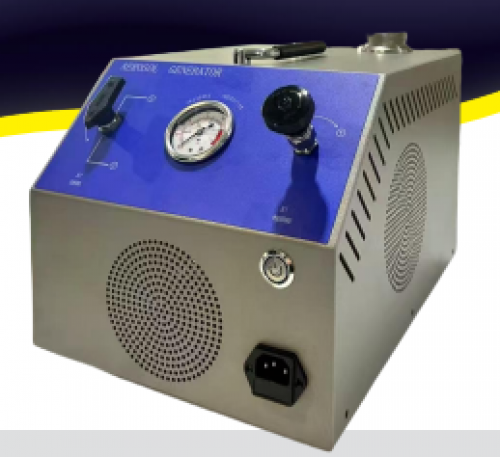

The APC-6D aerosol generator casing is entirely made of stainless steel, and the regulating and switching valves are also made of stainless steel. The pressure gauge is an oil filled seismic pressure gauge. This product is an aerosol generator produced after a series of improvements. The built-in air pump adopts an oil-free compressor and does not require an external air source (it can also be connected to an external air source). PAO or DOP solution is atomized through 2 or 6 Laskin Nozzles nozzles to produce high concentration aerosol

Basic parameters and techniques

The usable flow range is 50-2000 cfm (1.4-56.6 m3/min)

Concentration of 10ug/L: flow rate of 2000cfm

100ug/L: Flow rate of 2.00cfm

Smoke nozzle type 2 to 6Laskin nozzle

Aerosol type dispersed (cold occurring)

The external dimensions are approximately 260 × 240 × 385mm

Compressed gas with built-in oil-free air compressor

Power supply AC220-240V, 50HZ

Aerosol types: PAO, DEHS, DOP, polydispersity

Weight approximately 18kg

PS: When applicable to a pressure of 20psi (0.14Mpa), note: DOP is not recommended
