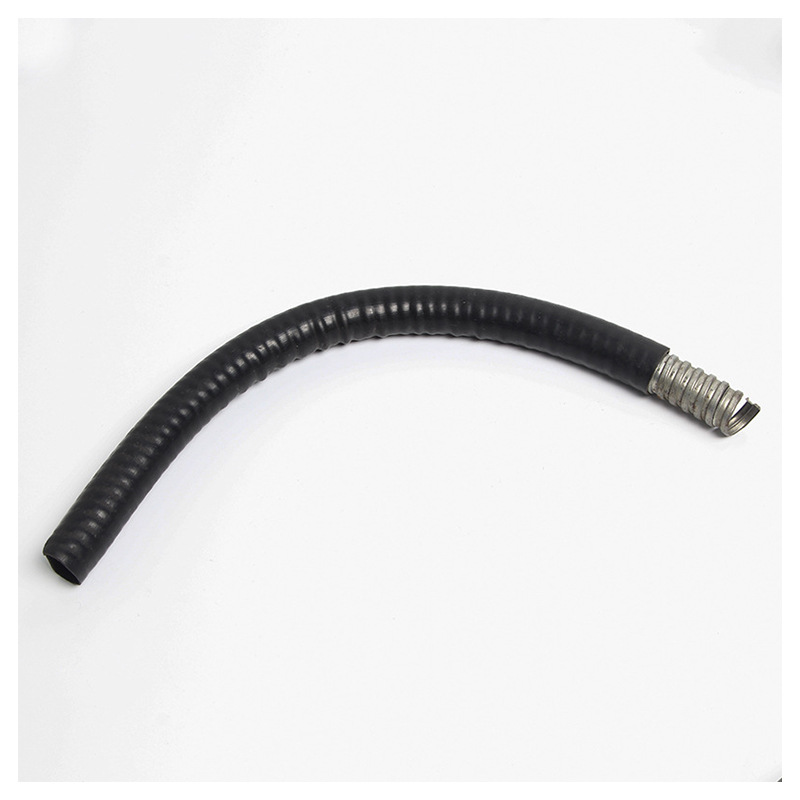

点击图片查看原图
规格表注 | 最小内径mm | 外径mm | 节距mm | 单件长度m | 适配钢管 | ||||
公制 | 英制 | 薄钢 | 厚钢 | ||||||
φ6 | 5.7 | 9 | 2.7 | 200 | |||||
φ8 | 5/16" | 7.7 | 11.8 | 4 | 100 | ||||
φ10 | 1/4" | 9.7 | 14.5 | 4.7 | 100 | #12 | 1/2" | ||
φ12 | 3/8" | 11.7 | 16.5 | 4.7 | 100 | #15 | 5/8" | #10 | 3/8" |
φ15 | 1/2" | 14.7 | 20.2 | 5.7 | 100 | #20 | 3/4" | #15 | 1/2" |
φ20 | 3/4" | 19.6 | 24.5 | 6.4 | 50 | #25 | 1" | #20 | 3/4" |
φ25 | 1" | 24.5 | 24.5 | 6.4 | 50 | #32 | 1/1/4" | #25 | 1" |
φ32 | 1/1/4" | 31.5 | 39.6 | 10.5 | 25 | #40 | 1/1/2" | #32 | 1/1/4" |
φ38 | 1/1/2" | 37.5 | 46.6 | 11.4 | 25 | #50 | 2" | #40 | 1/1/2" |
φ51 | 2" | 49.5 | 59.6 | 11.4 | 20 | #70 | 2/1/2" | #50 | 2" |
φ64 | 2/1/2" | 62.5 | 74 | 14.2 | 20 | #80 | 3" | #70 | 2/1/2" |
φ75 | 3" | 73 | 85 | 14.2 | 15 | #80 | 3" | ||
φ100 | 4" | 97 | 109 | 14.2 | 10 | #100 | 4" | ||
φ125 | 5’ | 122 | 135.5 | 14.2 | 10 | #125 | 5" | ||
φ150 | 6’ | 146.5 | 161.5 | 14.2 | 10 | #150 | 6"
| ||
