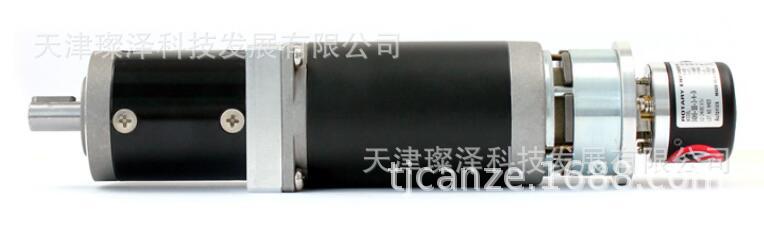

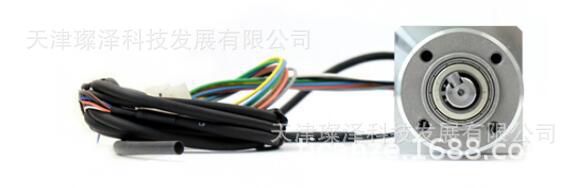

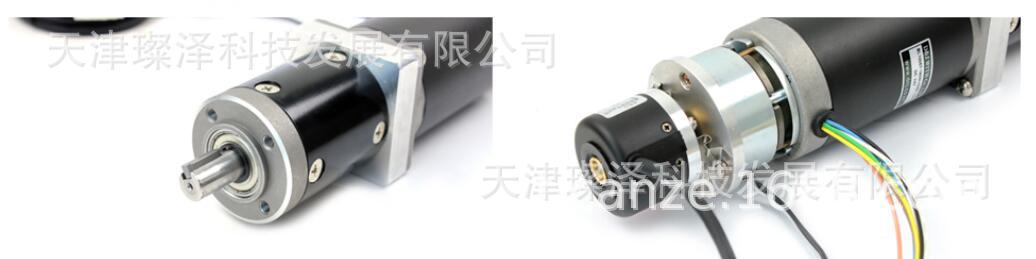

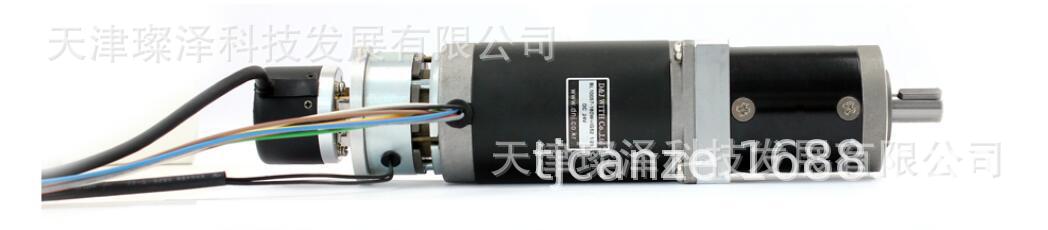

BL10057 (180W) + IG52 with Encoder & Brake

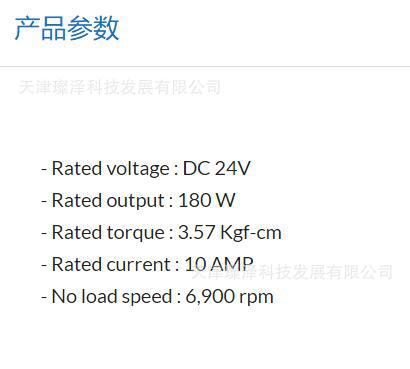

产品参数
- Rated voltage : DC 24V
- Rated output : 180 W
- Rated torque : 3.57 Kgf-cm
- Rated current : 10 AMP
- No load speed : 6,900 rpm
