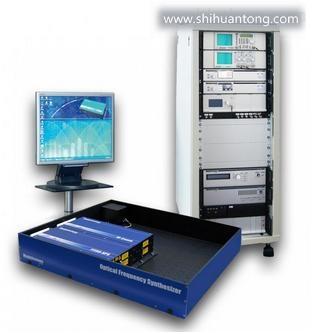

光学频率梳
FC1500 – 250-WG
Optical Frequency Comb
主要特点和优势：
·高重复率
·全光纤耦合干涉仪
·操作范围从500纳米到2100纳米
·扩展偏移频率调谐范围
·交钥匙计量系统，全自动梳子控制和数据采集软件
FC1500 – 250-WG：
Comb spacing | 250 MHz |
Accuracy | 10-14 in 120 s or same as reference, whichever applies first |
Stability | 5x10-13 in 1 s or same as reference, whichever applies first |
Tuning range of comb spacing | >2 MHz |
Tuning range of offset frequency | >250 MHz |
Wavelength range | 1050-2100 nm and 500-1050 nm* |
FC1000-250
Optical Frequency Comb
主要特点和优势：
·高重复率
·全光纤耦合干涉仪
·操作范围约530 nm - 1040 nm
·扩展偏移频率调谐范围
·交钥匙计量系统，全自动梳子控制和数据采集软件
FC1000-250
Comb spacing | 250 MHz |
Accuracy | 10-14 in 120 s or same as reference, whichever applies first |
Stability | 5x10-13 in 1 s or same as reference, whichever applies first |
Tuning range of comb spacing | >2 MHz |
Tuning range of offset frequency | >250 MHz |
Wavelength range | 530-1080 nm* |
Mid-IR Comb
Optical Frequency Comb
主要特点和优势：
·光谱范围3.1 - 3.4µm 和6.5-7.8µm(扩展范围可选)
·高重复率，100MHz或250 MHz
·高输出功率120mW在3 µm
·频谱带宽>200nm
·交钥匙计量系统，全自动梳子控制和数据分析软件
Mid-IR Comb：
Comb spacing | 100 or 250 MHz |
Accuracy | 10-14 in 120 s or same as reference, whichever applies first |
Stability | 5x10-13 in 1 s or same as reference, whichever applies first |
Tuning range of comb spacing | >2 MHz |
Tuning range of offset frequency | >250 MHz |
Wavelength range | 3.1-3.4 µm and 6.5-7.8 µm (extended range optional) |

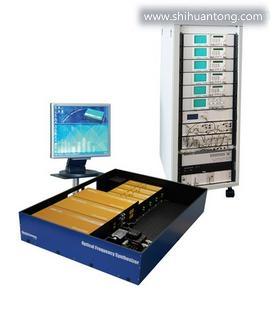

FC8004
Optical Frequency Synthesizer
主要特点和优势：
·精度10 – 14或一样参考，任何应用
·稳定性5 x10-13在时间间隔为1秒或一样参考，任何应用
·输出端口1:630 - 850 nm,输出端口2:532，1064nm
·*自动化的梳子控制和数据采集软件
FC8004：
Comb spacing | 200 MHz |
Accuracy | 10-14 or same as reference, whichever applies first |
Stability | 5x10-13 in one sec. or same as reference, whichever applies first |
Wavelength range | 630-850 nm and 532, 1064 nm or 500-1100 nm* |
