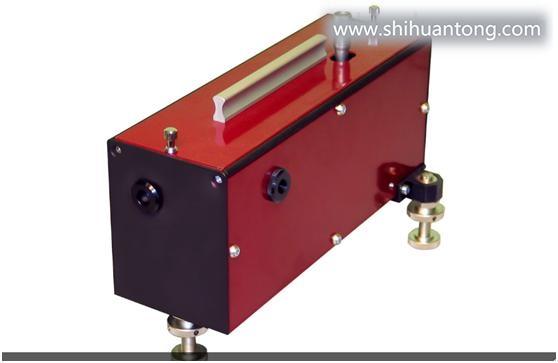

超快激光倍频器

产品型号

输入波长范围

二倍频输出

三倍频输出

四倍频输出

转换效率

ASG

720-1600 nm

360-800 nm

no

no

SH: 20-50%

ATsG

750-1600 nm

375-800 nm

250-533 nm

no

SH: 20-50%; TH: 3-15%

AFsG

820-1600 nm

410-800 nm

no

205-400 nm

SH: 20-50%; FH: 3-10%

AMG

780-1600 nm

390-800 nm

260-533 nm

195-400 nm

SH: 30-60%; TH: 5-10%; FH: 1-10%

ASG-O
(for oscillators)

ASG-A
(for amplifiers)

可实现的输入波长范围*

720-1600 nm

输入波长调谐范围**

50-100 nm

输出波长***

360-800 nm

输入脉宽

>20 fs

输入偏振

linear, horizontal

输出偏振

linear, vertical

输入平均功率

0.1-3 W

<10 W

输入脉冲能量

<2 uJ

2 uJ - 10 mJ

输入光斑直径1/е^2

<2 mm

<10 mm

转换效率****

20-50%

30-50%

脉冲展宽

<100 fs

尺寸

280x140x190 mm

* - may be covered by several exchangeable optics sets, please indicate the desired wavelength range upon your request;
** - typical with one optics set, depends on exact central wavelength and pulse duration;
*** - defined by input wavelength;
**** - defined by input pulse energy and input pulse duration.

ATsG-O
(for oscillators)

ATsG-A
(for amplifiers)

可实现的输入波长范围*

750-1600 nm

输入波长调谐范围**

50-100 nm

输出波长***

375-800 nm (SH)
250-533 nm (TH)

输入脉宽

>20 fs

输入偏振

linear, horizontal

输入平均功率

0.3-3 W

<10 W

输入脉冲能量

<2 uJ

2 uJ - 10 mJ

输入光斑直径1/е^2

<2 mm

<10 mm

转换效率****

20-50% (SH)

3-8% (TH)

30-50% (SH)

8-15% (TH)

脉冲展宽

<100 fs (SH)

<200 fs (TH)

<100 fs (SH)

<180 fs (TH)

输出偏振

SH - linear, vertical;
ТГ - linear, horizontal

尺寸

480x222x192 mm

* - may be covered by several exchangeable optics sets, please indicate the desired wavelength range upon your request;
** - typical with one optics set, depends on exact central wavelength and pulse duration;
*** - defined by input wavelength;
**** - defined by input pulse energy and input pulse duration.

AFsG-O
(for oscillators)

AFsG-A
(for amplifiers)

可实现的输入波长范围*

820-1600 nm

输入波长调谐范围**

50-100 nm

输出波长***

410-800 nm (SH)
205-400 nm (FH)

输入脉宽

>50 fs

输入偏振

linear, horizontal

输入平均功率

0.3-3 W

<10 W

输入脉冲能量

<2 uJ

2 uJ - 10 mJ

输入光斑直径1/е^2

<2 mm

<8 mm

转换效率****

20-50% (SH)

3-8% (FH)

30-50% (SH)

5-10% (FH)

脉冲展宽

<100 fs (SH), <1000 fs (FH)

输出偏振

SH - linear, vertical;
FH - linear, horizontal

尺寸

480x222x192 mm

* - may be covered by several exchangeable optics sets, please indicate the desired wavelength range upon your request;
** - typical with one optics set, depends on exact central wavelength and pulse duration;
*** - defined by input wavelength;
**** - defined by input pulse energy and input pulse duration.

AMG-A
(for amplifiers)

可实现的输入波长范围*

780-1600 nm

输入波长调谐范围**

50-100 nm

输出波长***

390-800 nm (SH)
260-533 nm (TH)
195-400 nm (SH)

输入脉宽

>50 fs

输入偏振

linear, horizontal

输入平均功率

<10 W

输入脉冲能量

0.2-10 mJ

输入光斑直径1/е^2

<8 mm

转换效率****

30-50% (SH), 5-10% (TH), 1-10% (FH)

脉冲展宽

<100 fs (SH), <250 fs (TH), <1000 fs (FH)

输出偏振

linear: SH - vertical; TH - horizontal; FH - vertical

尺寸

480x222x192 mm

* - may be covered by several exchangeable optics sets, please indicate the desired wavelength range upon your request;
** - typical with one optics set, depends on exact central wavelength and pulse duration;
*** - defined by input wavelength;
**** - defined by input pulse energy and input pulse duration.
